Evaporator Coil – Horizontal – Cased with Aluminum Hairpins (WLNH)

Categories: ,

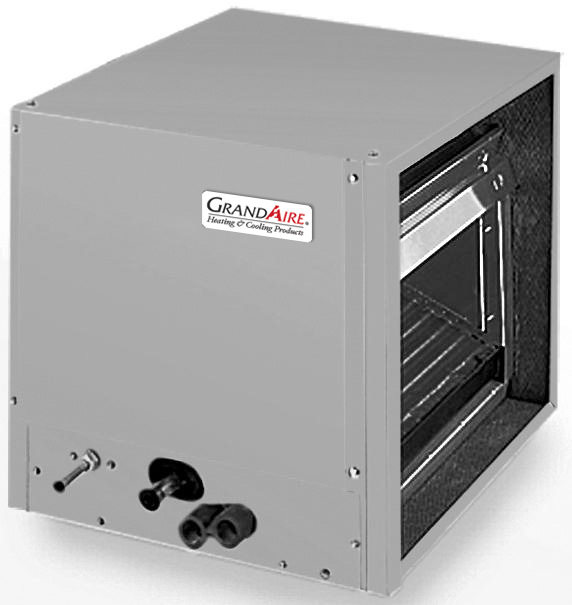

Cased Horizontal Evaporator Coil with Aluminum Hairpins

Model : WLNH

Standard Features

  • Available for environmentally sound R−410A systems
  • Aluminum hairpin/return−bend/fin “N” coil with the latest high−tech fin design
  • Bolt−on TXV metering device factory installed on all models (equalizer tube brazed in)
  • Available with industry exclusive tin coated copper main tubing for additional corrosion protection
  • Two condensate drain connections
  • Removable front access panel
  • Hemmed flanges for safer handling
  • Foil faced insulation
  • Non−sweat cabinet, even at extreme conditions
  • Cabinets meet or exceed 2% air leakage codes
  • Sturdy, pre−painted steel cabinet
  • Horizontal installation


  • 10-year parts limited warranty (including compressor and coil) with timely registration
  • 5-year parts limited warranty (including compressor and coil) if not registered within 90 days of original installation
  • For Owner-Occupied Residential Applications Only. *

* See warranty certificate for details and restrictions

Title Type Size
Product Specification application/pdf 267 KB
Installation Instructions application/pdf 560 KB
Warranty Certificate application/pdf 254 KB
