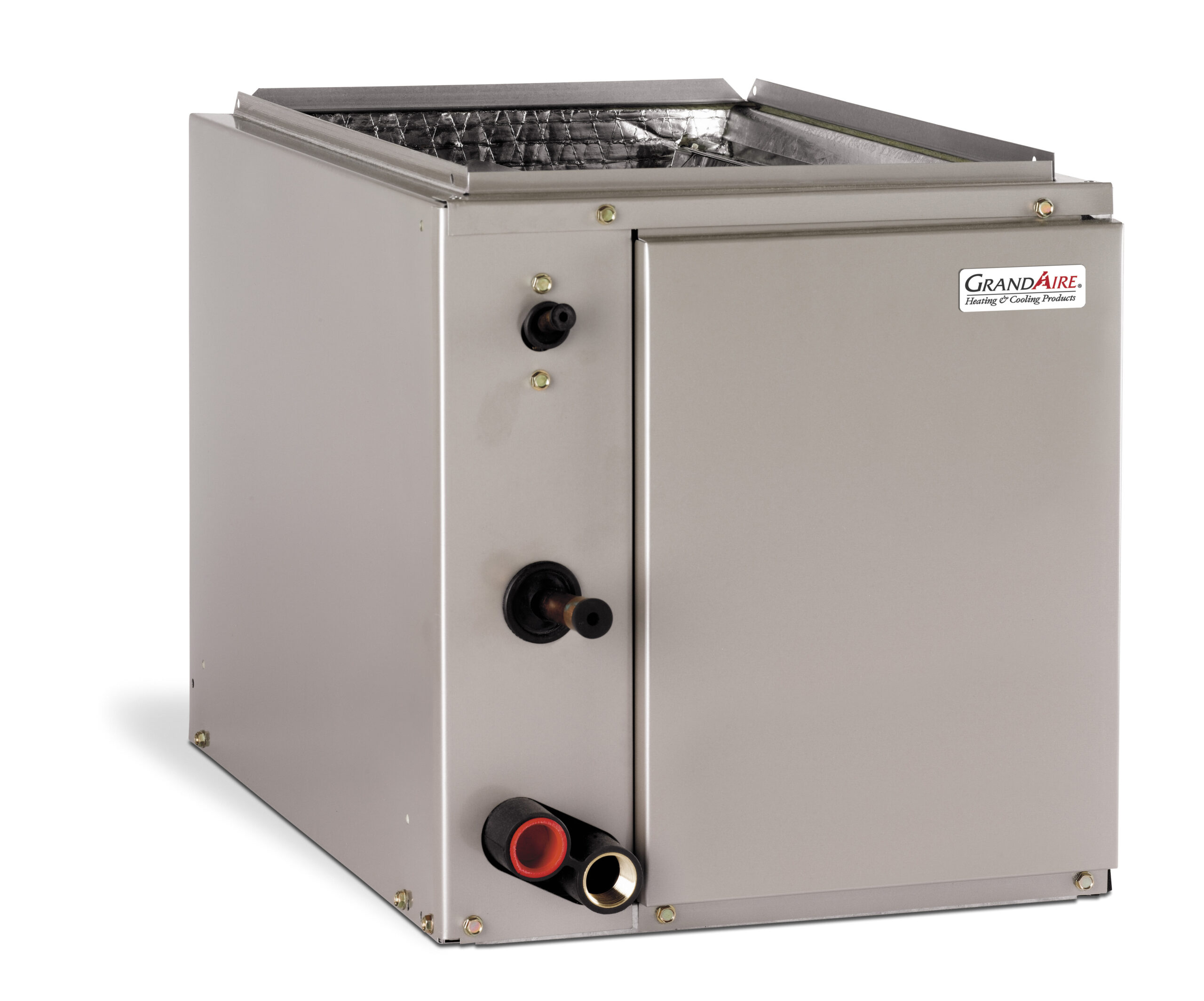

Evaporator Coil – Upflow / Downflow – Cased With Aluminum Hairpins (WLNC, WLNW)

Categories: ,

Description

Cased Upflow Downflow Evaporator Coil With Aluminum Hairpins

Model : WLNC WLNW

Standard Features

  • Aluminum hairpin/return-bend/fin “N” coil with latest high-tech fin design.
  • Bolt on TXV factory installed on all models (equalizer tube brazed in)
  • Available with industry exclusive¬† tin coated copper main tubing for additional corrosion protection.
  • Two condensate drain connections.
  • Cabinet widths¬†match flush with (WFMR, WFML, WFAR, WFSR) furnaces.

WLNC

  • Upflow or downflow installation
  • Compact design , shorter than comparable A-coils

WLNW

  • Upflow or downflow installation
  • Drain pan raised 2″ and block off plate factory installed for installing wider coil on narrower furnace.

LIMITED WARRANTY

  • 10-year parts limited warranty (including compressor and coil) with timely registration
  • 5-year parts limited warranty (including compressor and coil) if not registered within 90 days of original installation
  • For Owner-Occupied Residential Applications Only. *

* See warranty certificate for details and restrictions

Title Type Size
Product Specifications application/pdf 227 KB
Installation Instructions application/pdf 686 KB
Warranty Certificate application/pdf 254 KB
